Instrument Panel Side Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

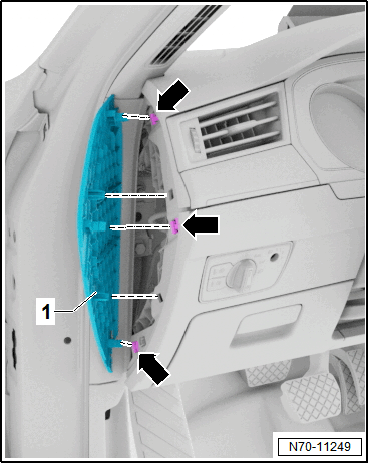

GWWN70-11249Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the instrument panel side cover -1- in the area of the catches -arrows- using the :VAS895 015  .

-- Remove the cover rearward from the A-pillar gap cover.
