Instrument Cluster Trim With Analog Instruments, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Release the steering wheel adjustment lever.
-- Pull out the steering wheel completely, push it downward and lock it.
-- Carefully unclip the steering column trim panel gap cover from the mounts in the instrument cluster.

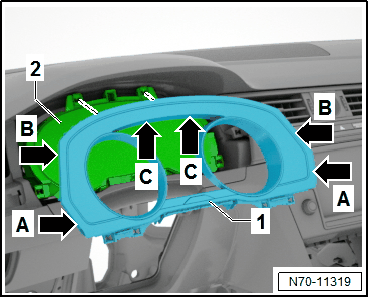

-- Unclip the instrument cluster trim -1- on the side downward -A arrows- out of the instrument cluster -2- using the :VAS895 015 .
-- Unclip the sides -B arrows- of the instrument cluster trim -1- from the instrument cluster -2- using the :T10383 .
-- Unclip the instrument cluster trim -1- on upward -C arrows- out of the instrument cluster -2- using the :VAS895 015 .
