Fully Digital Instrument Cluster Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Release the steering wheel adjustment lever.

-- Pull out the steering wheel completely, push it downward and lock it.

-- Remove the instrument panel decorative trim on the driver side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the instrument panel decorative trim (fully digital instrument cluster). Refer to DRIVER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .

-- Carefully unclip the steering column trim panel gap cover from the mounts in the instrument cluster.

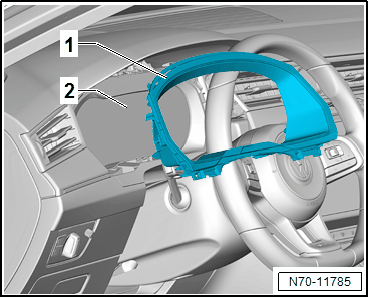

-- Unclip the instrument cluster trim -1- on the side out of the instrument cluster -2- using the :VAS895 015 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the instrument cluster trim -1- st the top from the instrument cluster -2- using the :VAS895 015 .
