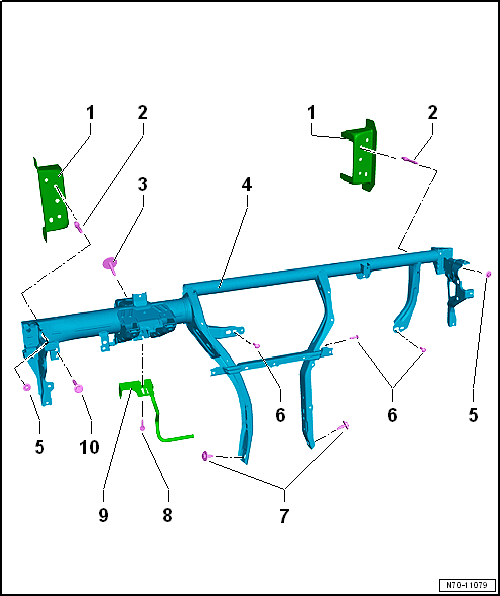

Overview - Instrument Panel CROSSMEMBER
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Securing Bracket
- Welded to the body
- Threaded Pins
- 20 Nm
- Bolt
- 20 Nm
- Instrument Panel Crossmember
- Removing and Installing. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
- Nuts
- 20 Nm
- Screws
- 4 Nm
- If one of the screws is overtightened when installing the heater and A/C unit, use the screw "N. 911.981.01" as a replacement.
- Bolts
- 20 Nm
- Bolt
- 20 Nm
- Crash Bolster
- Removing and Installing. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
