Crash Bolster, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the knee airbag with igniter. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
-- Remove the footwell vent on the driver side. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
-- Remove the Data Bus on Board Diagnostic Interface -J533-. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING .

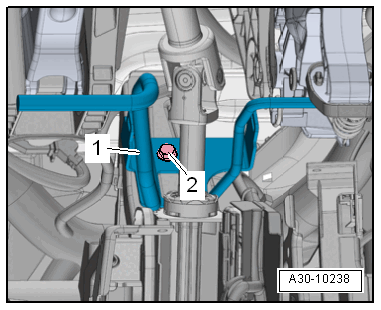

-- Remove the bolt -2-, disengage the crash bolster -1- and guide it out.
