Crash Bolster, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

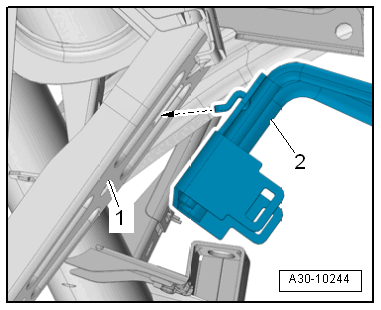

GWWA30-10244Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the crash bolster -2- on the crossmember -1- in direction of -arrow- and fasten.

Further installation is the reverse order of removal.
