Front Armrest, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

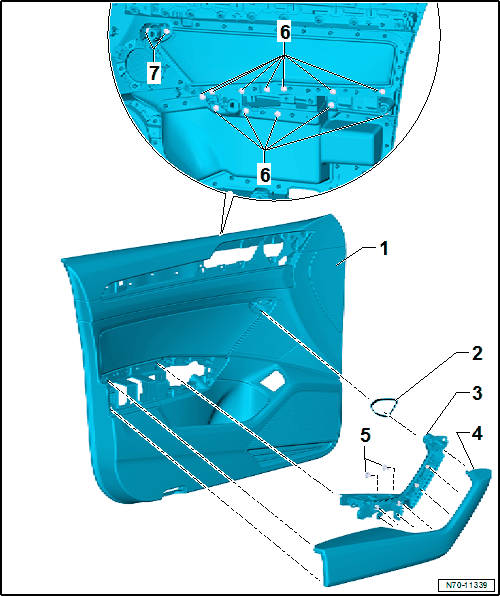

-- Remove the door trim panel -1-. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Depending on the vehicle equipment, disconnect the connectors from the base carrier -3-.
-- Remove the screws -6 and 7- for the armrest -4-.
-- Detach the armrest -4- and remove it from the door trim panel.
-- Remove the screws -5-.
-- Carefully disconnect the mount -3- from the armrest -4- using the :VAS895015 .
