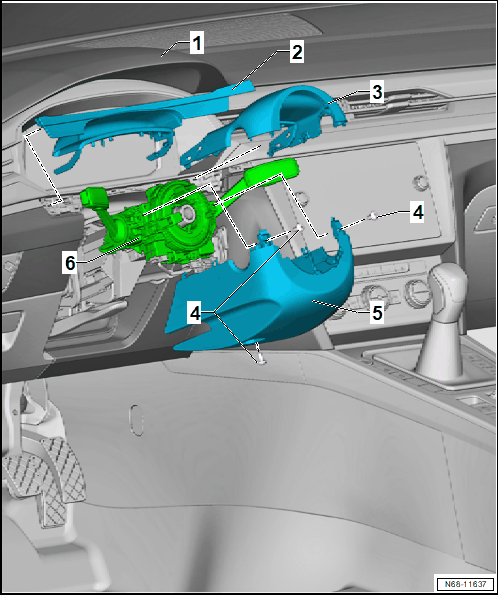

Overview - Steering Column Trim Panel (Fully Digital Instrument Cluster)

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
Upper Steering Column Trim Panel Gap Cover
- Clipped with the upper steering column trim panel
- Removing and Installing. Refer to STEERING COLUMN UPPER TRIM PANEL, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
Upper Steering Column Trim Panel
- Removing and Installing. Refer to STEERING COLUMN UPPER TRIM PANEL, REMOVING AND INSTALLING (FULLY DIGITAL INSTRUMENT CLUSTER) .
- Press on until it engages audibly.
Bolt
- Quantity: 3
- 2.5 Nm
Lower Steering Column Trim Panel
- Removing and Installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Steering Column Switch Module
- Overview. Refer to the appropriate Service Information .
