Overview - Instrument Panel Cover, Driver Side

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

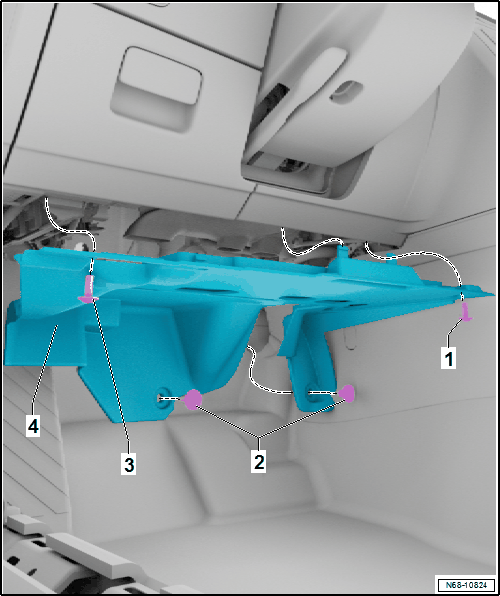

Fig 1: Exploded View Of Driver Side Instrument Panel Cover
GWWN68-10824Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 1.5 Nm
  2. Clips
    • Quantity: 2
  3. Bolt
    • 1.5 Nm
  4. Driver Side Instrument Panel Cover
