Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- If necessary, remove the ignition key.

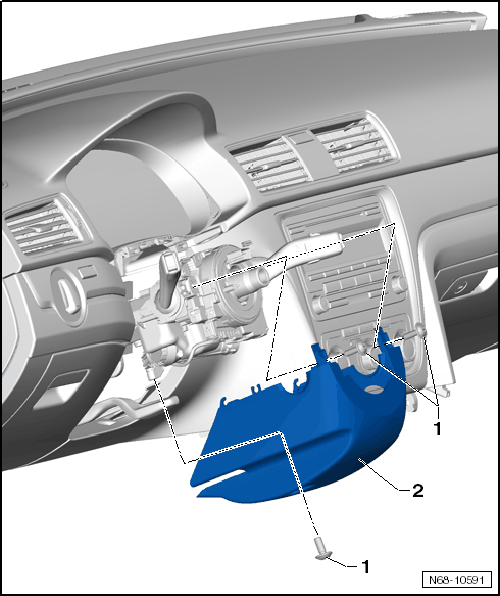

Fig 1: Identifying Steering Column Lower Trim Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -1- from the lower steering column trim panel. To do so, turn the steering wheel accordingly.

-- Remove the lower steering column trim panel -2- from the steering column.

-- For vehicles with a keyless locking and starting system, disconnect the connector for the Anti-Theft Immobilizer Reader Coil -D2-.
