Front Center Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

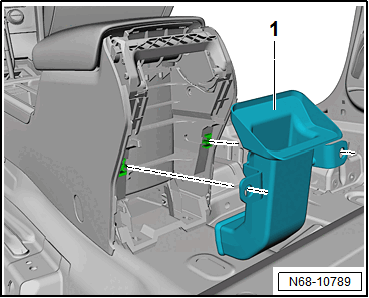

-- For vehicles with Climatronic, disconnect the connector to the temperature sensor in the air duct -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct -1-.

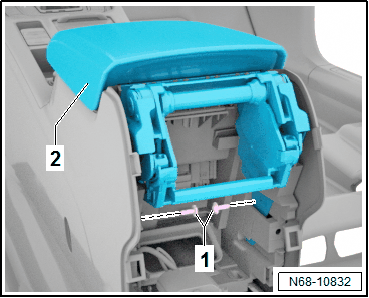

-- Remove the two screws -1- for the center armrest -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Under the two screws -1-, press the respective tab outward using the :3409 .

-- Remove the center armrest upward from the center console.
