Sun Visor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Pivot the sun visor forward.

-- Disengage the sun visor -2- at the center bearing -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

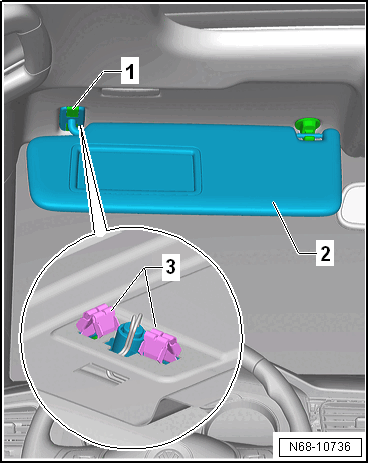

-- Open the caps -3- in the sun visor mount.

NOTE:

For the following steps, make sure that the :VAS6427 are positioned in the center of the retainers.

-- Using the :VAS6427 , loosen the front clamp -3- in the sun visor mount -1- from the body mount.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Keep tension on the sun visor to prevent the retainer from unintentionally locking again.

-- Using the :VAS6427 , loosen the rear clamp -3- in the sun visor mount -1- from the body mount.

-- Carefully remove the sun visor -2- with the sun visor mount -3- downward from the body mount. Remove the transportation safeguard.

-- Pull the wiring harness bonded to the headliner forward. Disconnect the connector and remove the sun visor.

NOTE:

If the wiring harness is torn off when >>pulling forward<<, lower the headliner. To service the wiring harness, use the :VAS1978 B .
