Front FOOTWELL Center Console Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

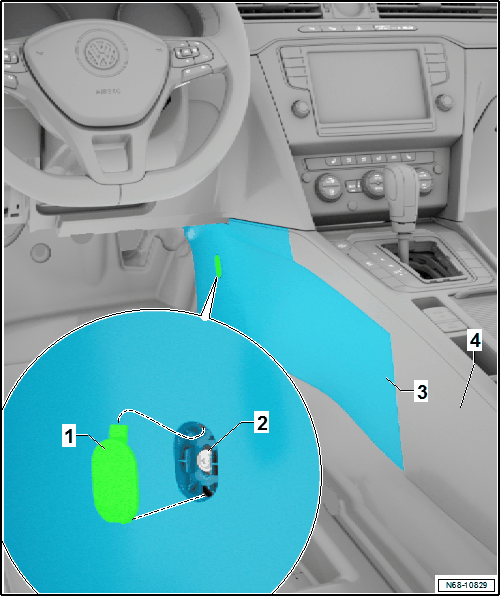

-- Remove the cap -1- from the front footwell center console trim panel -3-.
-- Remove the bolt -2-.
-- Unclip the front footwell center console trim panel -3- in the direction of seat from the mounts in the upper center area.
-- Pull the front footwell center console trim panel -3- out of the remaining mounts in the center console -4- and remove it.
