Display Control Head Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the radio/navigation system frame. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING .

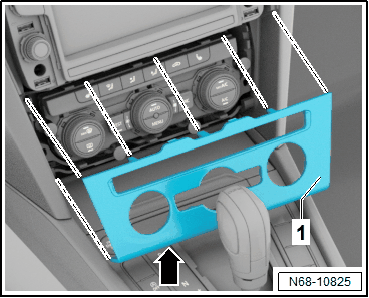

-- Engage the :3438 at the left lower end of the trim -arrow-.
-- Carefully unclip the trim -1- from the instrument panel installation opening using the :3438 .
