Expansion Valve

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Expansion Valve in Front of Heater and A/C Unit Evaporator

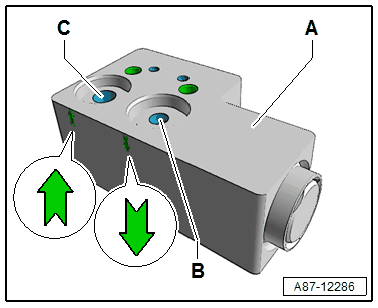

Depending on the design and the refrigerant circuit version, either a single- or two-stage expansion valve -A- is installed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
There may be a filter (screen) installed in the inlet -B-, which protects the expansion valve from any floating debris that is being carried along in the refrigerant circuit. If the filter is dirty, clean the refrigerant circuit.
The refrigerant flows at a lower pressure to the evaporator through the outlet -C-.
The arrows on the expansion valve -A- indicate the refrigerant flow direction (from the inner heat exchanger to the evaporator).
Before installing, check for debris, and clean or replace if necessary.
Pay attention to the different versions. Refer to Refrigerant Circuit (vehicle-specific Service Information) and the Parts Information.
