Rear Sunroof Water Drains, Checking For Clearance And Cleaning If Necessary

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

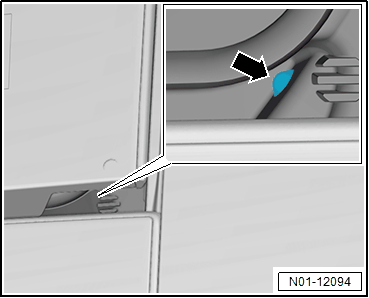

Sliding sunroof tilting rearward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the left rear water drain -arrow- for dirt and clean if necessary.

-- Using a measuring container and a commercially available funnel with a flexible hose fill approximately 0.5 liter tap water in the water drain. Work carefully so that water does not flow into the vehicle interior.

-- Check underneath the vehicle if water is flowing out near the rear wheel housing.

-- Repeat the procedure on the other side of the vehicle.

-- If no water flows out of the appropriate areas: clean the water drains

NOTE:

Cleaning the sunroof water drains is a repair procedure and should be charged separately.
