Seals, Checking For Damage And Cleaning

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

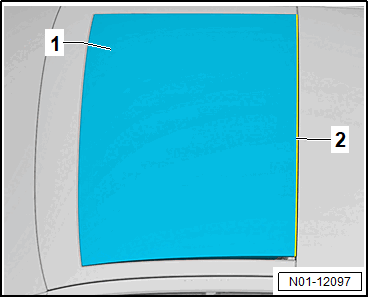

-- Bring the glass panel -1- in the raised position.

-- Check the seal on the rear glass panel -2- for damage.

-- Clean the seal on the rear glass panel -2- and is necessary the sealing surface on the other side of the roof.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

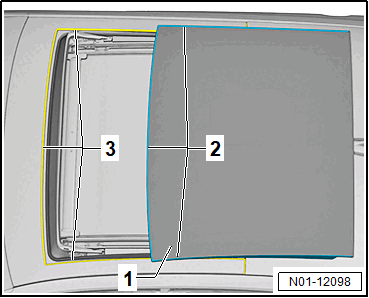

-- Completely open the glass panel -1-.

-- Check the seal on the roof -3- for damage.

-- Clean the seal on the roof -3- and the sealing surfaces on the glass panel -2-.
