Glass Panel Mechanism, Cleaning And Lubricating
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Close the glass panel enough so that the wind deflector is still completely in position.
-- Remove the grease and dirt residue on the glass panel mechanism with a lint-free cloth.

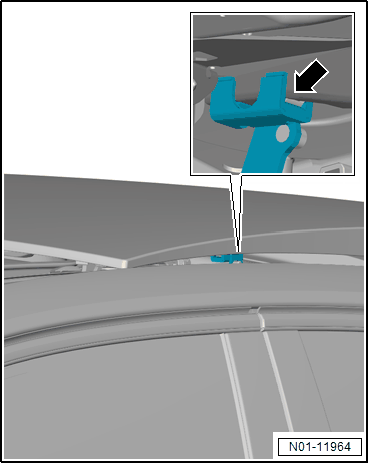

-- Apply lubricant on the glass panel mechanism mount carrier on the friction surfaces from the outside -arrows-.
-- Open the glass panel all the way.

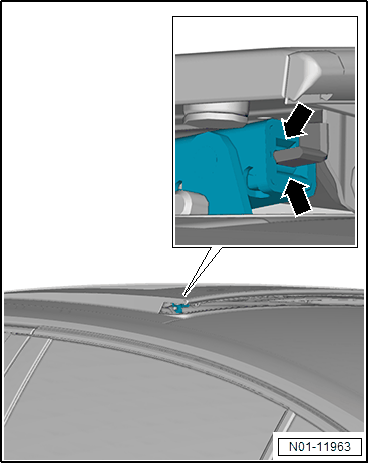

-- Apply lubricant on the glass panel mechanism mount carrier on the friction surface, from the inside or from the outside -arrow-.
-- Wipe away any excess lubricant on the glass panel mechanism mount carrier and adjusting lever using a lint-free cloth.
-- Repeat the procedure on the other side of the vehicle.
