FRONT PASSENGER AIRBAG, CHECKING KEY SWITCH AND "On/Off Function" (NOT FOR NORTH AMERICA MARKET)

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

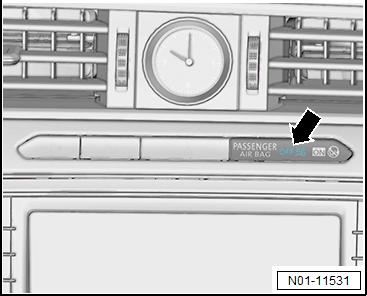

The "PASSENGER AIRBAG ON/OFF" control is on the side of the instrument panel on the front passenger side.

Front Passenger Airbag, Checking Key Switch and "ON/OFF Function"

-- Using the key, turn the switch to "PASSENGER AIRBAG OFF".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition on.

-- The "PASSENGER AIRBAG OFF" display -arrow- must also light up after the self-test (the front passenger airbag is deactivated).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch off the ignition.

-- Using the key, turn the switch to "PASSENGER AIRBAG ON".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch the ignition on.

-- The control indicator "PASSENGER AIRBAG OFF" -arrow- must go out after the self-test (front passenger airbag activated).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch off the ignition.
