12V Luggage Compartment Battery, Checking Battery Terminal Clamp For Secure Fit

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench

NOTE:

Tight battery terminal clamps assure trouble-free battery function and long service life.

Make sure the terminal clamp is attached completely to the battery terminal.

CAUTION:

The battery clamp on positive terminal is not seated securely.

Short circuit or sparks possible.

- Always disconnect the battery ground cable from the battery negative terminal first.

-- Open the access cover in the luggage compartment side trim panel on the left side.

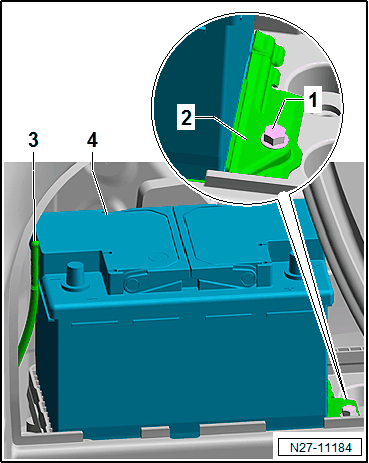

-- Make sure the battery -4- is secure. Tighten the bolt -1- back to the tightening specification if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

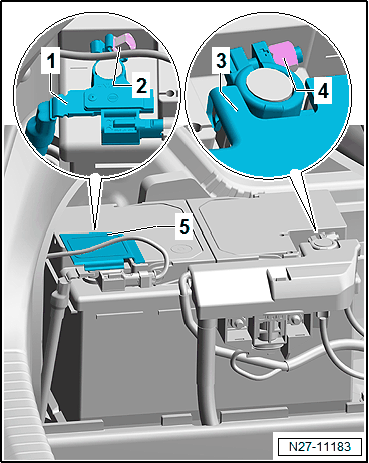

-- Open the cover -5- over the battery negative terminal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If installed, open the cover over the battery positive terminal.

-- Make sure the battery terminal clamps -1- and -3- are secure and if necessary, tighten the nuts -2- and -4-.

Tightening Specification	Nm
Nut on battery terminal	6
Bolt to bracket	15

After connecting the battery, perform the following:

Procedure

Refer to BATTERY, DISCONNECTING AND CONNECTING .
