Starter, Removing And Installing, Vehicles With DSG Transmission: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Vehicles with the Air Filter Housing Above the Starter

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

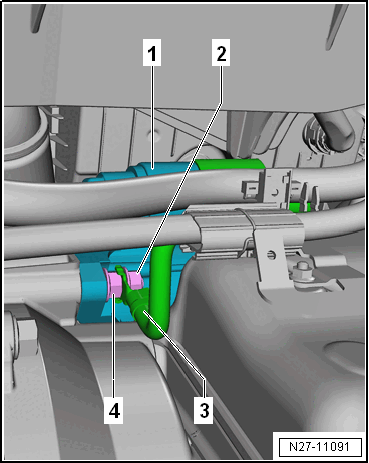

-- Remove the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ground wire -3-.

-- Remove the bolt -4- of the starter -1-.

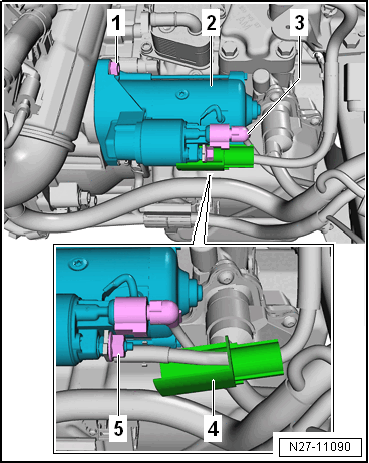

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cap -4-.

-- Remove the nut -5-.

-- Remove the line terminal 30/B+.

-- Remove the bolt -1-.

-- Remove the starter -2- upward.
