Battery Tray, Removing And Installing, Engine Compartment Battery: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the battery. Refer to BATTERY, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .

-- If necessary, remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

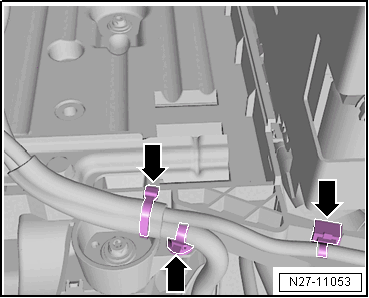

-- Free up the wiring harness from the battery tray -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

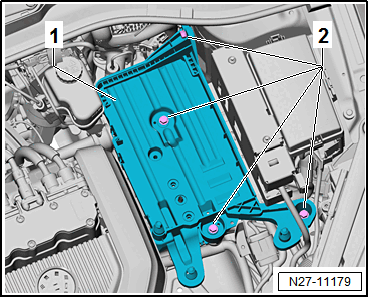

-- Remove the nuts and bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the battery tray -1-.
