Fuse Panel B -SB-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

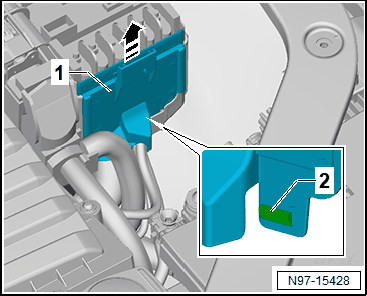

-- Release the locking tabs of the cover -1- in direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -1-.

-- Release the locking tab -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -1- in the direction of the -arrow-.

CAUTION:

Risk of interchanging the connector assignment.

- Use the exact connector assignment of the wires from the applicable wiring diagram. Refer to the appropriate Wiring Diagram.

- If necessary, take photos of the assignment.

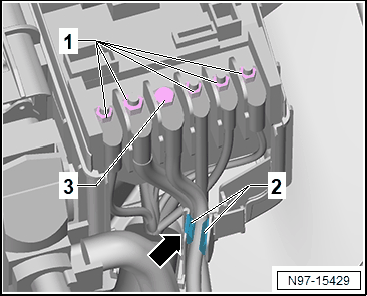

-- Remove the nuts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3-.

-- Release the tabs -2-.

-- Free up the wires.

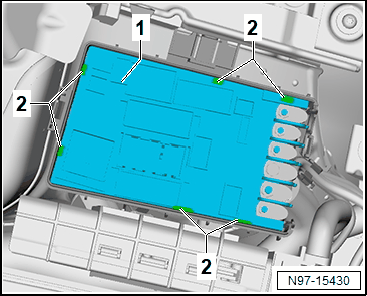

-- Release the retainers -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Fuse Panel B -SB- -1-.

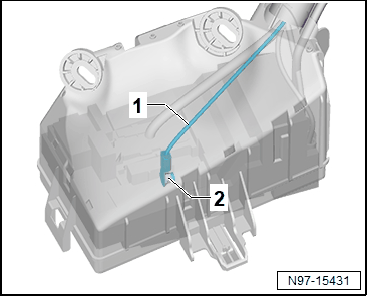

-- Remove the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wire -1-.
