Fuse Panel A -SA-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Fuse Panel B -SB-. Refer to Fuse Panel B -SB-, REMOVING AND INSTALLING .

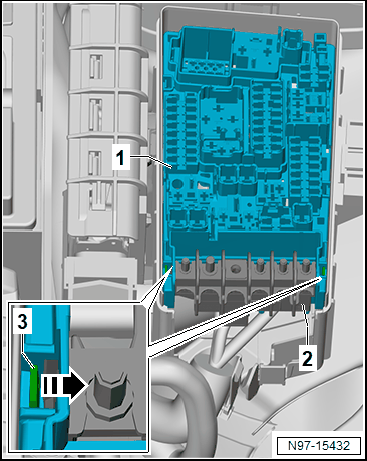

-- Release the locking tabs -3- in direction of -arrow-.

GWWN97-15432Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Fuse Panel A -SA- -2- from the Fuse Panel B -SB- -1-.
