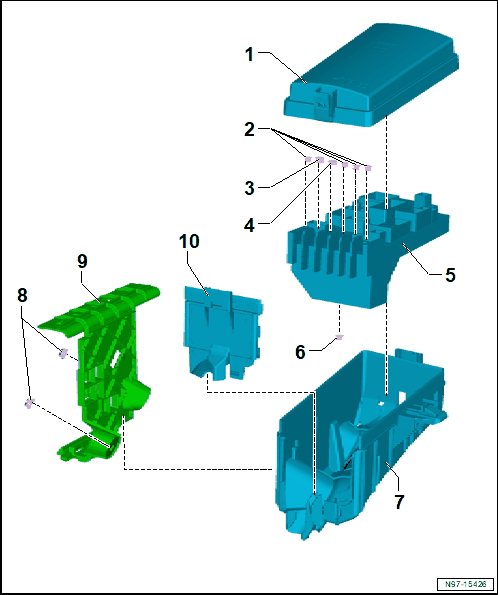

Relay Panels, Fuse Panels And Engine Compartment E-Box
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- E-Box Cover Engine/Motor Compartment
- Nut
- 4.5 Nm
- Quantity: 4
- Nut
- 6 Nm
- Bolt
- 6 Nm
- Fuse Panel B -SB-
- With connecting hose for the Fuse Panel A -SA-
- Removing and Installing. Refer to RELAY AND FUSE PANELS IN E-BOX, REMOVING AND INSTALLING .
- Nut
- 6 Nm
- Engine Compartment E-box
- Removing and Installing. Refer to E-BOX, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 2
- Engine/Motor Control Module Bracket
- Front E-Box Cover Engine/Motor Compartment
