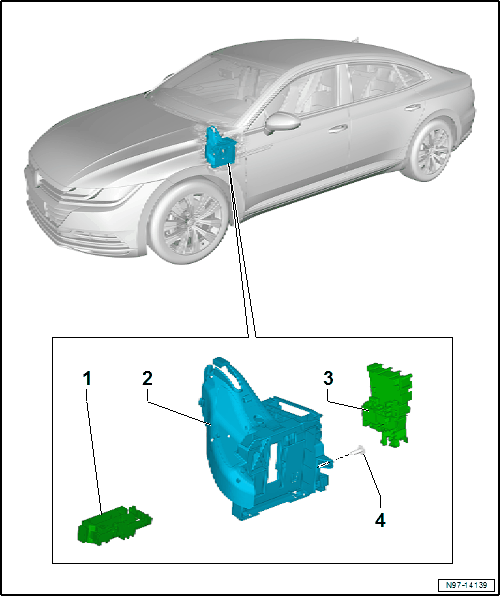

Relay Panel, Instrument Panel/A-Pillar Fuse Panel
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket for Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Bracket for Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Fuse Panel C -SC-
- Removing and Installing. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
