Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles without Knee Airbag
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Vehicles with Knee Airbag
-- Remove the knee airbag with igniter. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Continuation for All Vehicles
-- Remove the footwell vent on the driver side. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

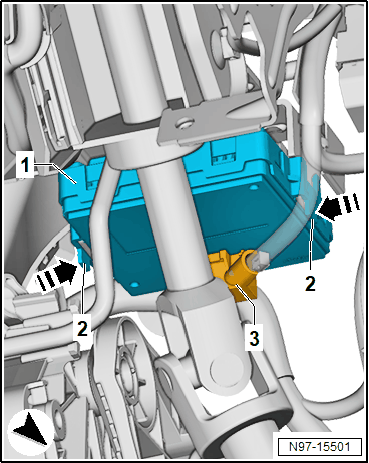

-- Disconnect the connector -3-.
-- Release the tabs -2- in direction of the -arrow-.
-- Remove the Data Bus On Board Diagnostic Interface -J533- -1-.
