0.13 Mm2/0.35 Mm2/0.5 Mm2 Wire, Repairing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A from the Wiring Harness Repair Set:VAS 1978 B

Fig 1: Identifying VAS 1978 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wiring Harness Repair - Crimping Plier - Base Tool:VAS 1978/1-2 from Wiring Harness Repair Set:VAS 1978 B
Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3

NOTE:

For the repair there are repair wires with a 0.35 mm² and 0.5 mm² cross section.

Procedure

-- Install the Wiring Harness Repair - Interchangeable Head: VAS 1978/1-3 -1- as follows on the Wiring Harness Repair - Crimping Plier - Base Tool:VAS 1978/1-2 :

-- Open the Wiring Harness Repair - Crimping Plier - Base Tool Wiring Harness Repair - Crimping Plier - Base Tool:VAS 1978/1-2 .

-- Remove the locking pin -2- all the way in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Wiring Harness Repair - Interchangeable Head Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3 -1- in the -direction of the arrow B- centered in the Wiring Harness Repair - Crimping Plier - Base Tool Wiring Harness Repair - Crimping Plier - Base Tool:VAS 1978/1-2 .

-- Push back in the locking pin -2- all the way.

-- Free up the wire to be repaired approximately 20 cm on both sides of the repair point.

CAUTION:

Risk of damaging the wires.

Expose wrapped wiring harnesses carefully

-- If necessary remove the iring harness wrapping.

-- Cut out the damaged wire section using a cutting wire.

NOTE:

When both ends of the vehicle-specific single wire are too short after cutting out the damaged wire section for a repair with a separate crimp connector, insert a corresponding long piece of yellow repair wire with two crimp connectors.

When repairing the single wire with crimped on/connected contact place the yellow repair wire near the damaged vehicle-specific single wire and cut to the required length.

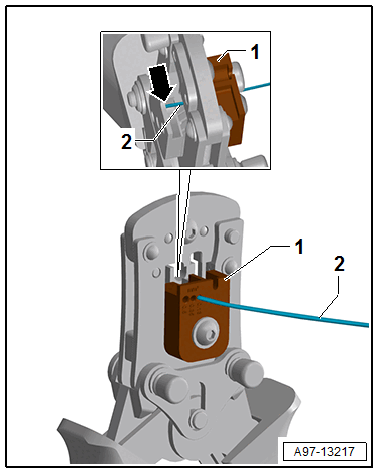

-- Insert the wire end -2- all the way -arrow- in the cross section fitting mount on the Wiring Harness Repair - Interchangeable Head Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Completely push together the crimping pliers and hold them together.

-- Remove the wire end -2- from the Wiring Harness Repair - Interchangeable Head Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3 -1- to strip.

-- Open the crimping pliers again.

The insulation must be cut cleanly and removed from the wires.
No insulation can remain on bare wires.
The single wires must not be damaged.

-- Use the small transparent crimp connector from the Wiring Harness Repair Set:VAS 1978 B .

-- For 0.13 mm² wires, also slide a heat-shrinkable tube onto one of the wires. Refer to the appropriate Electronic Parts Information.

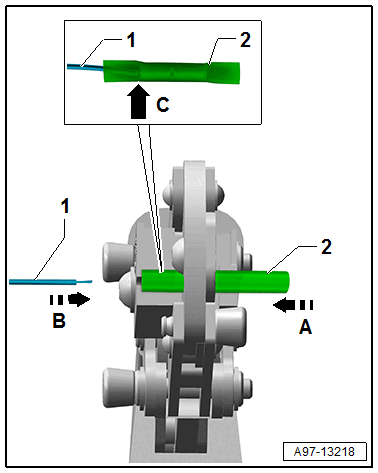

-- Push the crimp connector -2- all the way in the -direction of the arrow A- in the clamp opening on the Wiring Harness Repair - Interchangeable Head Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the striped wire -1- in the -direction of the arrow B- in the crimp connector -2-.

All single wires must be pushed in the crimp connector -2-
Do not crimp wire insulation -arrow C-.

-- Push the crimping pliers completely together and then open.

-- Remove the wire with the crimp connector.

-- Repeat the wire crimping with the crimp connector on the other side as described.

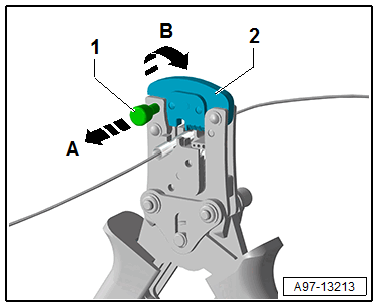

-- Remove the locking pin -1- all the way in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the upper section on the Wiring Harness Repair - Interchangeable Head Wiring Harness Repair - Interchangeable Head:VAS 1978/1-3 -2- in the -direction of the arrow B-.

-- Remove the crimped crimp connector.

Correct crimping results

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- After crimping, crimp connections must be heat-shrunk using hot air gun to prevent moisture penetration.

For 0.13 mm² wires, an additional heat-shrinkable tube must be heat-shrunk on to ensure a complete seal.

-- Insert the Wiring Harness Repair - Blower - Shrink Element:VAS 1978/15A on the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A .

Fig 2: Heating Crimp Connection Using Hot Air Gun

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the wires.

When heat-shrinking the heat-shrinkable tube, be careful not to damage any other wiring, plastic parts or insulating material with the hot nozzle of the hot air blower.
Always observe operating instructions of heat gun.

-- For 0.13 mm² wires position the heat-shrinkable tube -1- by feeling the contours centered over the crimp connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The dimension -a- must be approximately the same on both sides.

-- Heat the heat-shrinkable tube/crimp connector using the hot air blower lengthwise from center outward until it is sealed completely and adhesive comes out the ends.

The completed repair location -3- must look like so.

NOTE:

Make sure that crimp connections do not lie directly next to each other when several wires need to be repaired. Arrange the crimp connectors at a slight offset so that the circumference of the wiring harness does not become too large.

Fig 3: Identifying Offset Positions Of Crimped Connections

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If the repair point was previous taped, this point must be taped again with yellow insulating tape after repairs.

Secure the repaired wiring harness if necessary with a cable tie to prevent flapping noises while driving.

Early Release

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the operating lever -1- upward in the -direction of the arrow A-.

-- At the same time push the crimping pliers together and then open.

CAUTION:

Do not use the crimp connector after it is early released.
