Rear Wheel Housing Liner, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following describes the removal and installation of the left rear wheel housing liner. The right side is identical.

Depending on the model version, slight differences must be considered when removing and installing.

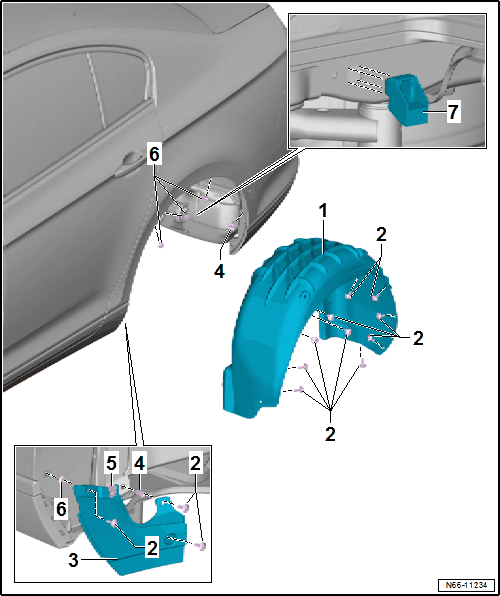

Fig 1: Exploded View Of Rear Wheel Housing Liner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Check the expanding nuts for damage and replace them if necessary OVERVIEW - REAR WHEEL HOUSING LINER.

Wheel Housing Liner

-- Install the rear wheel housing liner -1- in the wheel housing without bending it.

-- Install the wheel. Refer to WHEEL BOLTS TIGHTENING SPECIFICATION .

Sill Panel Cover

Position and fasten the sill panel cover.

-- Install the wheel. Refer to WHEEL BOLTS TIGHTENING SPECIFICATION .
