Front Wheel Housing Liner, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following describes the removal and installation of the left front wheel housing liner. The right side is identical.

Depending on the model version, slight differences must be considered when removing and installing.

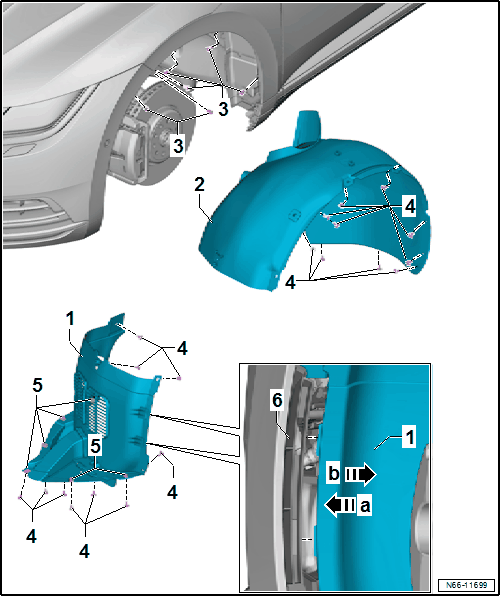

For a better view of the screws, the wheel is not shown in the illustration.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove the bolts -4 and 5-.

-- Loosen the front wheel housing liner -2- and the wheel housing liner front section -1- from the bumper -arrow b- and remove it from the fender.
