Tunnel Brace, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

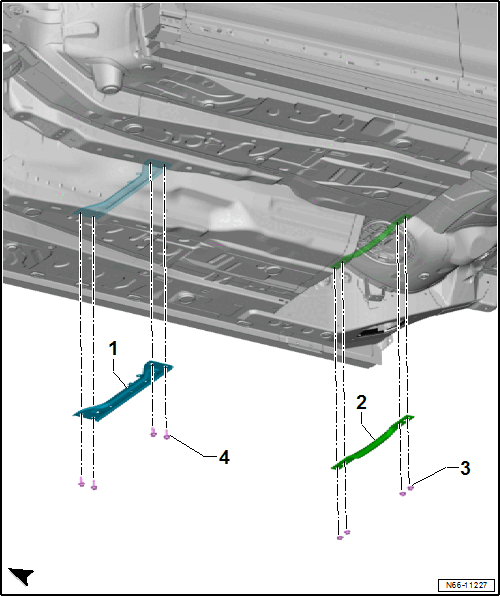

Fig 1: Exploded View Of Underbody Bracing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Tunnel Brace

-- Position the tunnel brace -1-.

-- Tighten the bolts -4-.

-- Install the underbody trim panel. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

Rear Tunnel Brace

-- Position the tunnel brace -2-.

-- Tighten the nuts -3-.

-- Install the underbody trim panel. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .
