Overview - Acoustic Underbody Trim Panels 1/3

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

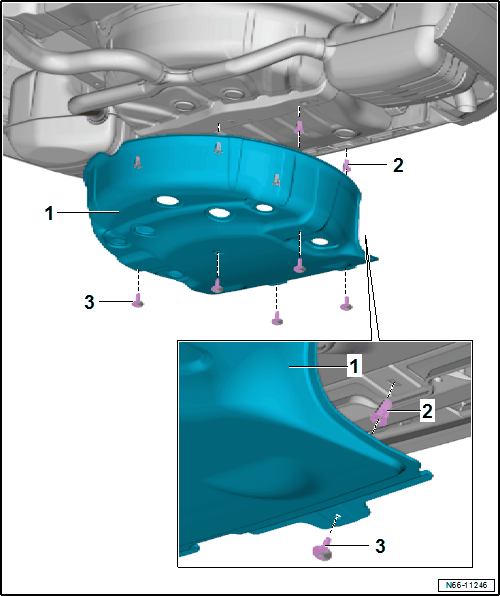

Fig 1: Exploded View Of Acoustic Underbody Trim Panels (1 of 3)
GWWN66-11246Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Acoustic Underbody Trim Panel
  2. Speed Nut
    • Quantity: 5
  3. Bolt
    • 2 Nm.
    • Quantity: 5
