Trailer Hitch, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Install in reverse order of removal.
NOTE:

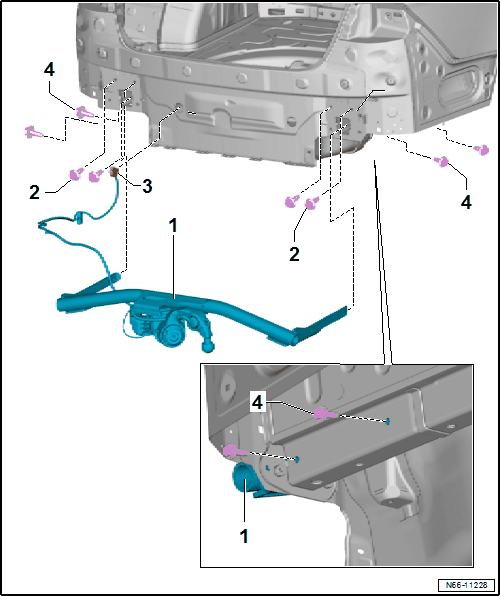

The bolts -2- are actually sealing threaded connections and seal off the passenger compartment from exhaust gas. They must always be installed.
The grommet on the wire -3- must be attached correctly in the cross panel.
-- Perform a function test after installing the trailer hitch.
