Rear Lid Spoiler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

For the following procedures, the guidelines for temperature, cleaning, removal of adhesive residue and the installation must be met. Refer to COMPONENTS WITH ADHESIVE TAPE, INSTALLATION PREPARATION .

NOTE:

The spoiler cannot be removed without damaging it.

CAUTION:

Wear protective gloves and eyewear when removing the special attachments.

When disassembling spoiler, a cutting cable must not be used because of the danger of damaging painted surfaces.

-- Remove contaminants from all joints to prevent any paint damage when removing the spoiler.

-- Cover all adjacent paint surfaces and gap between the rear lid and spoiler with tape.

-- Warm up the spoiler -2- before removal using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

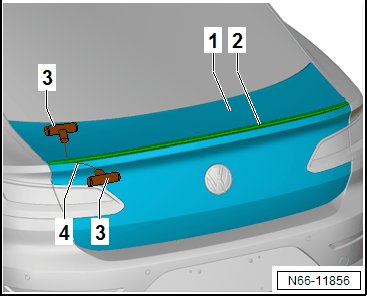

-- Thread cutting wire -4- at a corner between the rear lid -1- and spoiler -2-.

-- Cut through the adhesive bead and adhesive tape using sawing movements with the Bonded Window Tool Kit - Pull Handle:V.A.G 1351/1 -3-.

-- Remove the spoiler -2- from the rear lid -1-.
