Overview - Noise Insulation, Short

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Depending on the engine version, slight deviations must be considered when removing and installing.

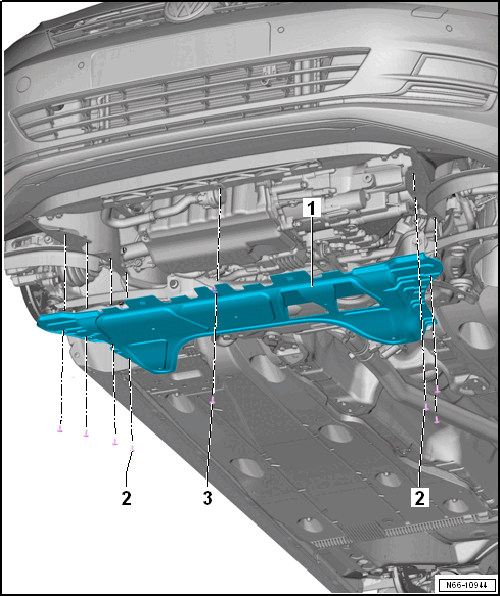

Fig 1: Exploded View Of Noise Insulation, R Models, GTI Clubsport
GWWN66-10944Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Noise Insulation, Short
    • Removing:

      -- Remove the bolts -2- and -3-.

      -- Remove the noise insulation toward the rear from the lock carrier.

  2. Bolt
    • Quantity: 3 on the left side
    • Quantity: 4 on the right side
    • 2.0 Nm
  3. Bolt
    • Quantity: 1 on the lock carrier
    • 1 Nm
