Overview - Impact Guard

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Depending on the engine version, slight deviations must be considered when removing and installing.

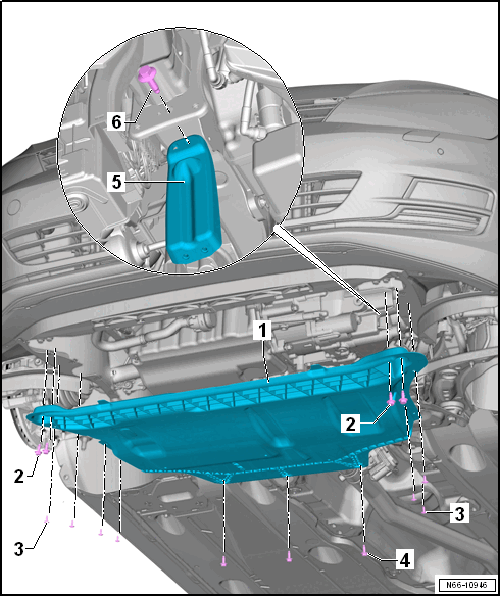

Fig 1: Exploded View Of Impact Guard
GWWN66-10946Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Impact Guard
    • Removing:

      -- Remove the bolts -2-, -3- and -4-.

      -- Remove the noise insulation toward the rear from the lock carrier.

  2. Bolt
    • Quantity: 2 for both the right and left sides
    • 20 Nm
  3. Bolt
    • Quantity: 3 on the left side
    • Quantity: 4 on the right side
    • 2.0 Nm
  4. Bolt
    • Microencapsulated, to be replaced after every removal
    • Quantity: 3
    • 20 Nm
  5. Impact Guard Bracket
    • Left and right
  6. Bolt
    • Quantity: 1 on each side
    • 20 Nm
