Roof Trim Molding, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

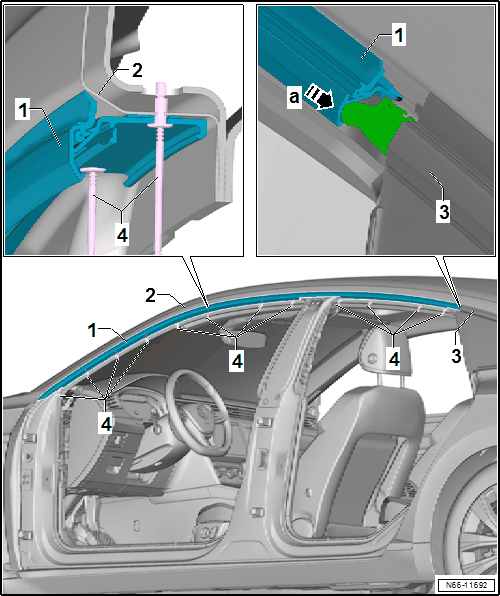

GWWN66-11692Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the roof trim molding -1- on the roof pillar -2-.

-- Slide the roof trim molding -1- into the guide on the side window -3- -arrow a-.

-- Position the rivets -4-.
