Roof Trim Molding Seal, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the B-pillar trim. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
-- Slightly remove the front of the inner door seal from the roof pillar. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
-- Slightly remove the rear of the inner door seal from the roof pillar. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .

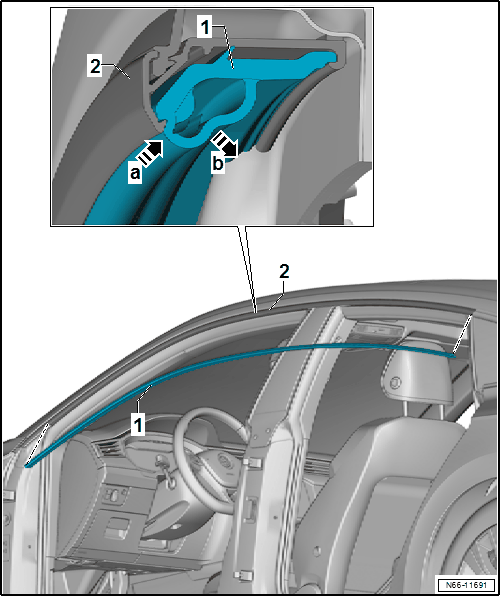

-- Using a plastic wedge, push the seal -1- out of the roof trim molding support bracket -2- -arrow a-.
-- Pull the seal -1- out of the roof trim molding -2- -arrow b-.
