Roof Trim Molding Seal, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

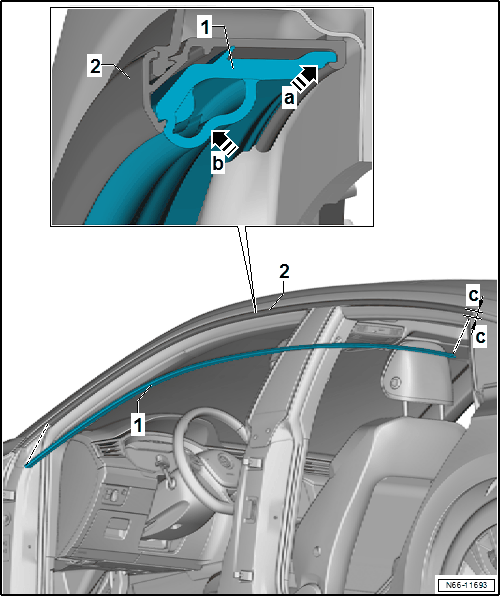

GWWN66-11693Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the seal -1- into the roof trim molding -2- -arrow a-.

-- Press the seal -1- into the roof trim molding support bracket -2- -arrow b-.
