Assembly Instructions: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

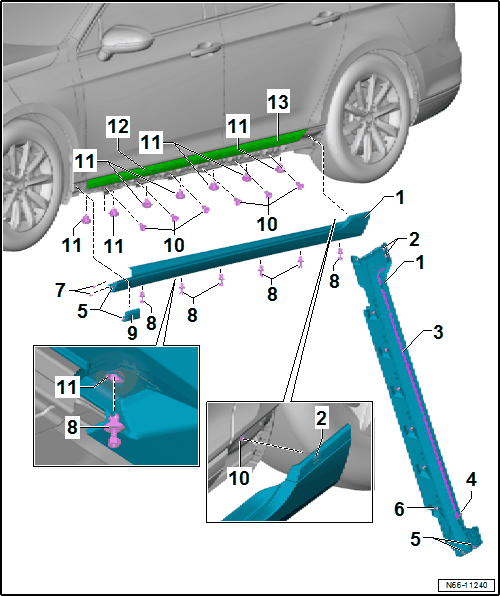

Fig 1: Exploded View Of Side Sill Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Follow the assembly instructions. Refer to Assembly Instructions .

-- Remove the adhesive residue and clean the adhesive surface.

-- Adhere to the flash-off time of 30 minutes.

-- All grommets -8-, clips -4-, and expanding rivets -8- must be checked for damage and replaced if necessary.

-- Guide the side sill trim panel -1- with the clips -2 and 6- into the grommets -10- and press on firmly.

-- Remove the protective film -4- from the adhesive tape -3-.

-- Press the side sill trim panel in the adhesive tape area -3- firmly against the side sill.

-- Tighten the bolts -7-.
