Overview - B-Pillar Trim

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

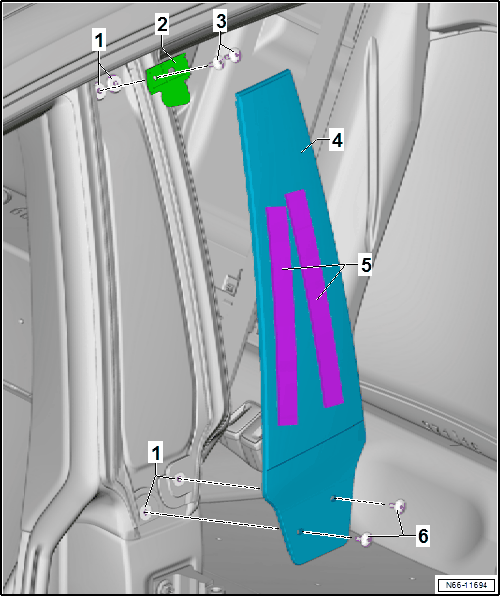

Fig 1: Exploded View Of B-Pillar Trim
GWWN66-11694Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Expanding Nut
    • Quantity: 2
  2. Bracket
  3. Bolt
    • Quantity: 2
    • 2 Nm
  4. B-Pillar Trim
  5. Two-Sided Adhesive Tape
  6. Bolt
    • Quantity: 2
    • 2 Nm
