Assembly Instructions: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The covers cannot be removed from the two-sided adhesive tape without destroying it.

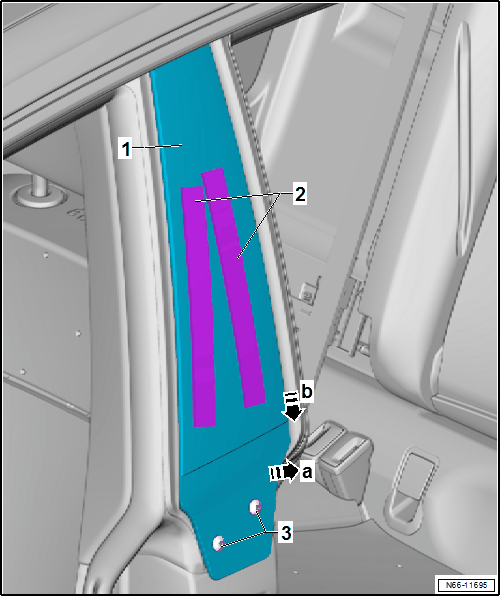

-- Remove the bolts -3-.
-- Warm up the trim -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A near the adhesive tape -2-.
-- Remove the trim -1- in the lower section from the B-pillar -arrow a- and pull downward out of the bracket -arrow b-.
