Assembly Instructions: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Follow the assembly instructions. Refer to Assembly Instructions .
-- Remove the adhesive residue and clean the adhesive surface.
-- Allow the adhesive surfaces to dry for 10 minutes.

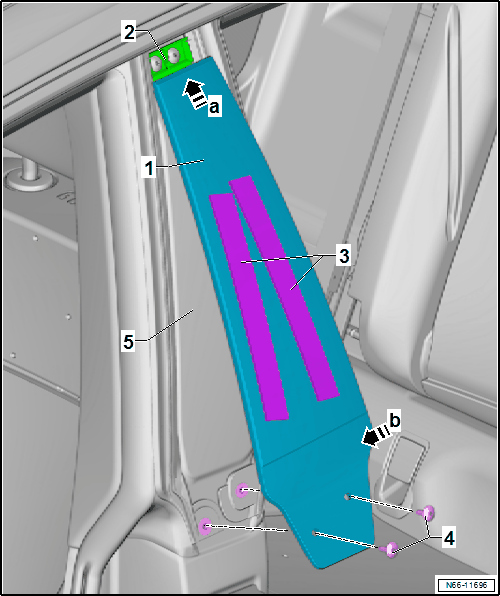

-- Remove the adhesive tape protective film -3-.
-- Push the trim -1- into the bracket from below at an angle -arrow a-. Must not contact the B-pillar -5-.
-- Guide the trim on the B-pillar -5- -arrow b- and press firmly on the adhesive tape area -3-.
-- Tighten the bolts -4-.
