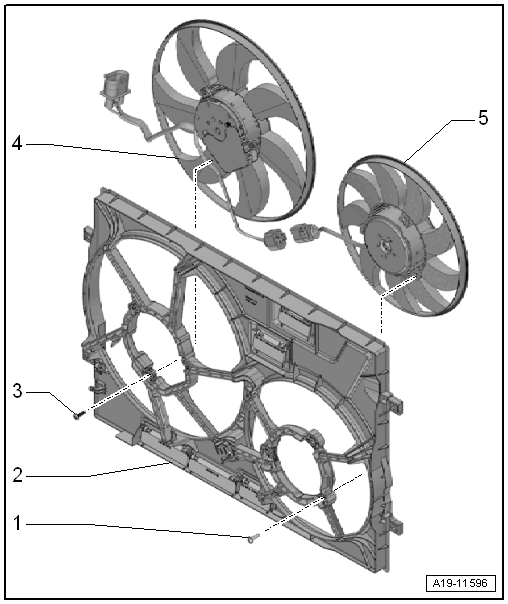

Overview - Fan Shroud And Radiator Fan
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 5 Nm
- Quantity: 3
- Fan Shroud
- Refer to Fan Shroud, Removing and Installing .
- Bolt
- 5 Nm
- Quantity: 3
- Radiator Fan -VX57-
- With Radiator Fan Control Module -J293-
- With Radiator Fan -V7-
- Refer to RADIATOR FAN VX57, REMOVING AND INSTALLING .
- Radiator Fan 2 -V177-
- Depending on the equipment/version
- Refer to RADIATOR FAN 2 V177, REMOVING AND INSTALLING .
