Overview - Auxiliary Radiator

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the right side of the vehicle as an example

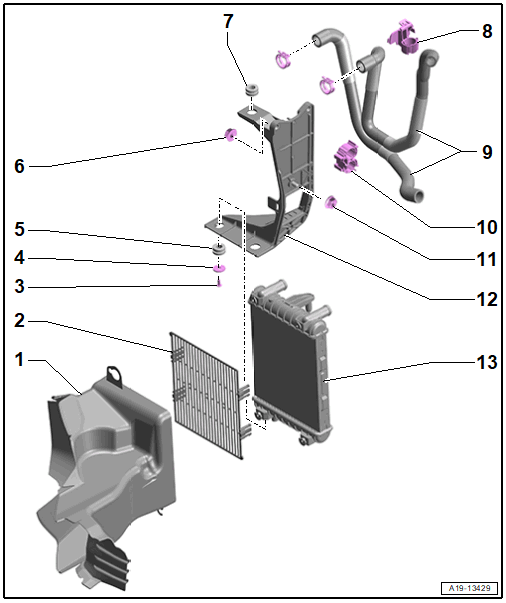

Fig 1: Exploded View Of Auxiliary Radiator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Air Duct
Grille
Bolt
- 3.5 Nm
- Quantity: 2
Washer
Rubber Bushing
Nut
- 20 Nm
- Quantity: 2
Rubber Bushing
Bracket
Coolant Hose
- Quantity: 2
Bracket
Nut
- 20 Nm
Bracket
Auxiliary Radiator
- Refer to Auxiliary Radiator, Removing and Installing .
