Fan Shroud, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air duct on the lock carrier. Refer to the appropriate Service Information .

Vehicles with Auxiliary Radiator:

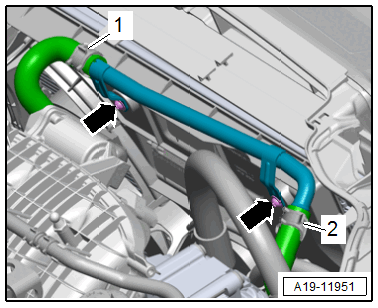

-- Remove the bolts -arrows- and press the coolant pipe to the rear on the lock carrier.

Fig 1: Coolant Pipe on the Fan Shroud

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Loosen clamps -1 and 2- and disconnect the charge air hose.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- by sliding the retainer back in the direction of -arrow A- and pressing the release.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the retainers on both sides of the vehicle in direction of -arrow B- at the same time, pull off the fan shroud from the radiator upward and remove it downward.

If Other Procedures are Done:

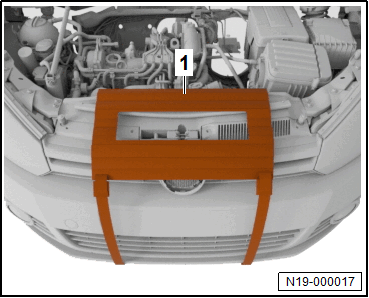

-- Install the Protective Mat:VAS 531 003 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation
