Overview - Engine/Motor Coolant Temperature Sensor

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

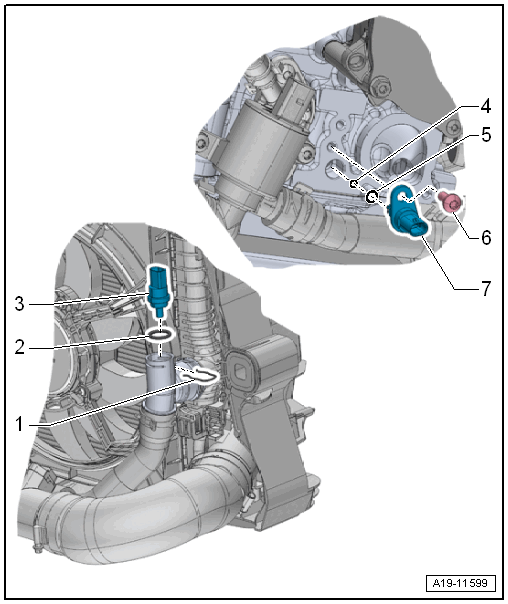

Fig 1: Engine Coolant Temperature Sensor Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clip
O-Ring
- Replace after removing
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Refer to ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET G83, REMOVING AND INSTALLING .
O-Ring
- Replace after removing
O-Ring
- Replace after removing
Bolt
- 4 Nm +45°
- Replace after removing
Engine Coolant Temperature Sensor -G62-
- Refer to ENGINE COOLANT TEMPERATURE SENSOR G62, REMOVING AND INSTALLING .
