Overview - Coolant Pump/Coolant Thermostat
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Connection
- O-Ring
- Replace after removing
- Quantity: 2
- Alignment Pin
- Quantity: 2
- Bolt
- 9 Nm
- Quantity: 2
- Seal
- Replace after removing
- Coolant Pump
- Refer to Coolant Pump, Removing and Installing .
- Bolt
- Coolant Pump - Tightening Specification and Sequence. Refer to Fig 2.
- Quantity: 4
- Coolant Pump Toothed Belt
- Bolt
- 9 Nm
- Quantity: 2
- Toothed Belt Guard
- There are different versions. Allocation. Refer to the appropriate Electronic Parts Information.
- Bolt
- 17 Nm
- Left-hand thread
- Toothed Belt Sprocket
- Seal
- Replace after removing
- Intake Side Balance Shaft
- Seal
- Replace after removing
- Engine Temperature Control Adjusting Element -N493-
- Refer to ENGINE TEMPERATURE CONTROL ACTUATOR N493, REMOVING AND INSTALLING .
- Tightening specification and sequence. Refer to Fig 3.
Coolant Pump - Tightening Specification and Sequence.
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 through 4- | Install all the way by hand |
| 2. | -1 through 4- | 9 Nm |

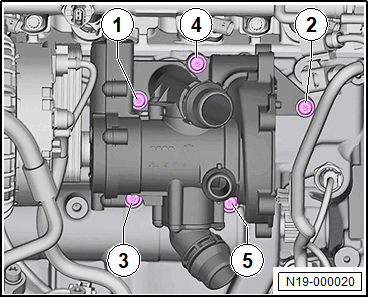

Engine Temperature Control Actuator - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 through 5- | Install all the way by hand |
| 2. | -1 through 5- | 9 Nm |
