Engine Temperature Control Actuator N493, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Refer to DRAIN THE COOLANT .

-- Remove the Throttle Valve Control Module -GX3-. Refer to the appropriate Service Information .

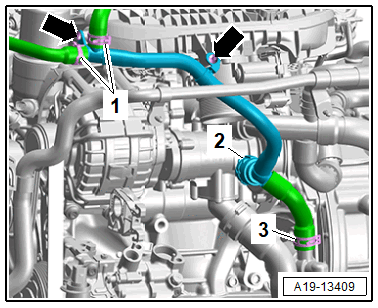

-- Loosen the clamp -3- and remove the coolant hose.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Lift the clamp -2- and push the front coolant pipe to the side.

-- Remove the coolant pump. Refer to Coolant Pump, Removing and Installing .

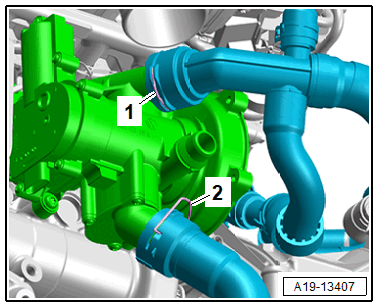

-- Lift the clamps -1 and 2-, then remove the coolant hoses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

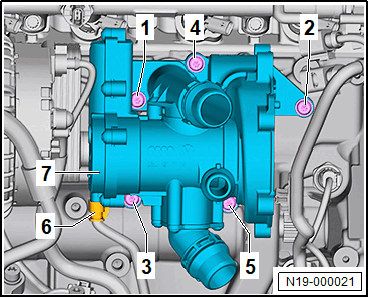

-- Remove the bolts -1 through 5-.

-- Take off the Engine Temperature Control Actuator -N493- -7- from the alignment pins and remove.
