Electric Coolant Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left air duct pipe. Refer to Left Air Duct Pipe, Removing and Installing .

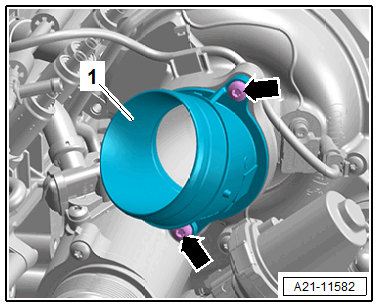

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turbocharger connection -1-.

-- Loosen the clamp -arrow- and remove the charge air hose.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

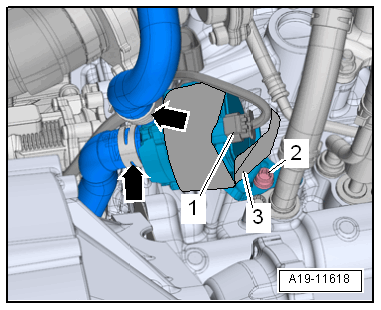

-- Open the heat shield boot -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.

-- Clamp off the coolant hoses using the Hose Clamps - Up To 25mm:3094 .

-- Place a cleaning cloth underneath, to catch cleaning coolant leaking out.

-- Loosen the clamps -arrows- and remove the coolant hoses.

-- Remove the bolt -2- and the coolant pump with bracket.
